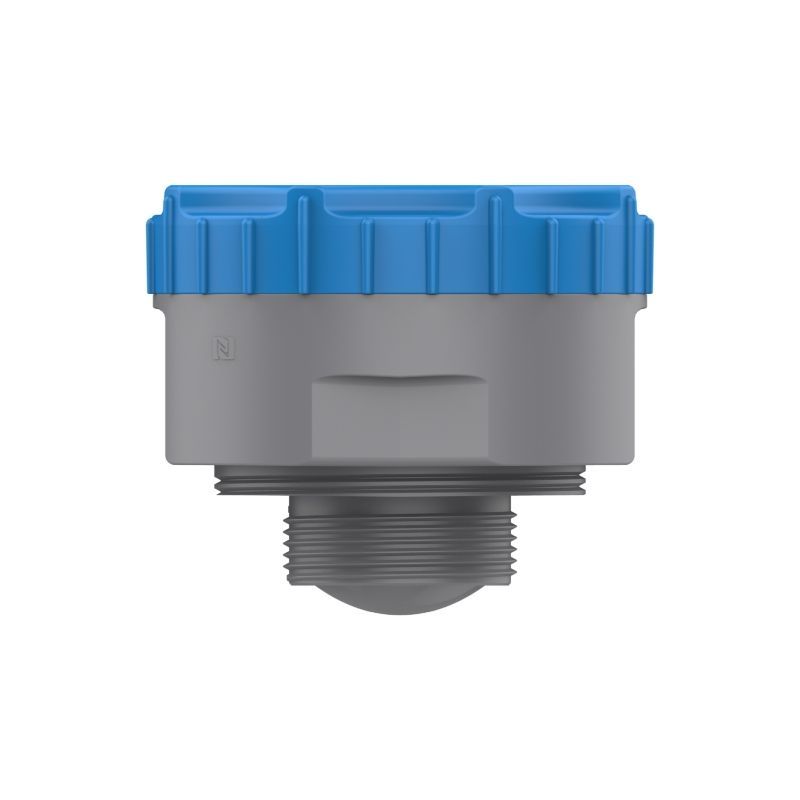

Milesight LTE CAT1 Smart Radar Distance and Level Detection Sensor
Milesight LTE CAT1 Smart Radar Distance and Level Detection IoT Sensor. The Milesight EM410-RDL is a non-contact Radar Distance/Level Sensor that adopts Millimeter Wave Radar technology. By measuring millimeter-wave signals at higher frequencies, it provides more stable performance over longer distances, and is less affected by environmental conditions. It can detect the distance between the sensor and liquid of various types, unaffected by temperature, dust, condensate etc. With IP68 waterproof and sealed enclosure, it can withstand the worst environment, while maintaining the measurement accuracy, and does not require routine maintenance. The EM410-RDL can be used in sewers, rivers, impounding reservoir, storage tanks and other locations that require distance measurements and level.
Perfect for smart buildings, smart city deployments or industrial use-cases and Smart Agri.
- 8° Radar beam angle can be focused on the target fluid, enabling accurate measurement of
- liquid level
- Wide measuring range of 0.3m to 12m with small blind zone
- Not affected by dust, condensation, temperature, acoustic noise, etc
- Non- invasive liquid level monitoring, can detect hazardous or non-hazardous liquids
- Built-in 3-axis accelerometer sensor to monitor device tilt status
- Support to check radar-echo curve and one-click diagnostic to calibrate the distance
- Support blind zone alarm when the ranging results are within the blind zone
- Adopt PVDF material, offering excellent corrosion resistance, wear resistance and
- compressive strength for harsh environments
- IP68 waterproof design, resistant in fresh water to a maximum depth of 1m for up to 48 hours
- Thread design for common tank installation without extra accessories needed
- Easy configuration via NFC and Bluetooth
